    High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

    Ask Lasest Price
    Brand Name : Xinming
    Model Number : XMWK500-A
    Certification : ISO9001, CE
    Price : negotiable
    Payment Terms : T/T, D/A, D/P, Western Union
    Supply Ability : 10000 sets per years
    Delivery Time : Within 25-35 working days after receive 30% deposit
    • Product Details
    • Company Profile

    High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

    2019 SUS304/SUS316L Multilayer Filter for Fine Chemical Industry


    Intrduction

    Stainless steel filter press machine with 304, 306 high quality stainless steel materials, corrosion resistant, durable, filter plate adopts screw structure, can according to customer's different product replacement filter material (filter material available microporous membrane filter, filter paper, filter cloth, clarify plate, etc.), using silica gel, and fluorine rubber (acid and alkali resistant) two kinds, no leakage, sealed performance is good.
    Stainless steel plate and frame filter with microporous filter membrane is a solution to the chemical industry, pharmaceutical food and other industries filter activated carbon, particles and other better equipment, to ensure 100% carbon flow, large flow, easy to disassemble.

    Specifications

    ModelDimensions(mm)Filter Area(m2)Filter Plate QTYValve DiameterTheoretical Flow(t/h)Working Pressure(MPa)
    XMWK220900*300*400115DN321-2<0.3
    XMWK2501100*350*4502202-3
    XMWK3301700*600*7503.4152-4
    XMWK4001840*680*8005.1203-5
    XMWK500-B1950*750*8508.9208-10
    XMWK500-A2450*750*85015.93813-15
    XMLS-330(Vertical)550*540*12503.4193-5
    XMLS-400(vertical)920*560*15508.9398-10

    Remark:

    • Max capacity is the reference value base on water test; the actual value can be different because of liquid viscosity, solid content and pressure difference
    • The material can be carbon steel, SUS304 and SUS316L
    • Horizontal or vertical type can be customized.

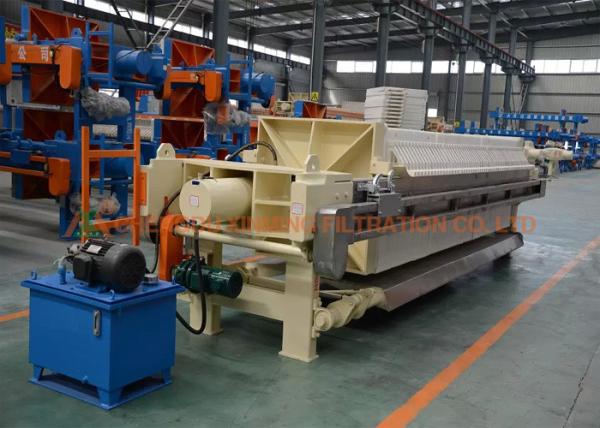

    Our Factory
    550 mm Plate Stainless Steel plate and frame filter press

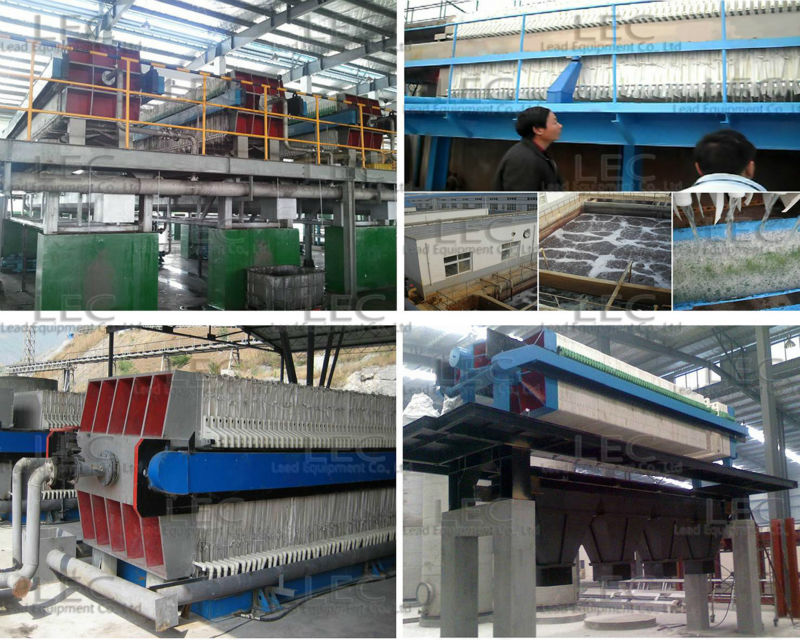

    Working Occasion
    550 mm Plate Stainless Steel plate and frame filter press

    Our Service
    High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry
    High Efficiency Stainless Steel Filter Press Diatomite Filter Machine For Beverage Industry

    After-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    Frequently asked questions


    1.

    Q:Please tell us the following information so that we can make you the offer
    Filteration area:_____m²
    Raw material: _____
    Capacity:_____
    Voltage: _____
    2.

    Q: Can you provide us the detailed drawing?
    Yes, we can provide you the drawing after have made the prepayment.
    3.

    Q: Are you a manufacturer or a trader?
    We're a professional and experienced manufacturer located in Sichuan.
    4.

    Q: Can you accept OEM?
    Yes, we can produce the machinery totally according to your design standard.
    5.

    Q: How about the delivery time?
    Normally 20-35 working days after prepayment, and we promise we will make the delivery as soon as we can.
