High Quality Auto Chamber Once Open Filter Press Popular in America.

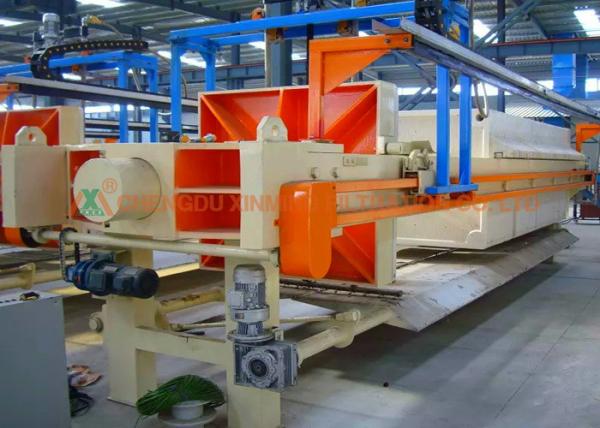

Automatic Chamber Filter Press:

Membrane squeezing to make the filter cakes as dry as possible.
Automatic discharging for labor saving.
Siemens PLC control.
Hydraulic pressing ensures best sealing performance.
Short processing cycle time
Slurry feeding pressure 0.6MPa-2.5MPa.

Technology Parameters

Model	XGZY1500-X
Filter Area(m2)	3 00
Plate Size(mm)	1500*1500
Cake Thickness(mm)	35
Filter Chamber Volume(L)	5199
Plate Qty(pcs)	73
Filtration Pressure(MPa)	0.6
Motor Power(Kw)	7.5
Weight(kg)	28160
Dimensions L*W*H(mm)	8720*2000*1820
Foundation Size L/B/D/H(mm)	7850/1000/1990/1070

Advantage

1.Labour saving:

All the operation could be worked by the machine, one worker can supervise several machine’s working.

2. Efficiency:

Fully automatic operation, with a short working cycle at each process, helping you increase the production capacity.

3. Long lifetime:

The beam is made by best carbon steel and not easy to out of shape, filter plate is made by good PP material and can bear high pressure

Applications

Auto chamber once filter press are mainly used chemical,ceramics,petroleum,food,smelting, etc.

Customer Cases

Certification:

* Inquiry and consulting support.

* Sample testing support.

* Filter press technical support

* View our Factory.

* 24 hours website hot line service.

PLEASE CLICK"Send Message" ~Right Now.

Chengdu Xinming Filter Equipment Co., Ltd. is a comprehensive enterprise specializing in the design, manufacture and sales of filtration equipment and comprehensive filtration engineering and solutions. Since 2005, it is located in CHENGDU, the "LAND OF PLENTY" of China

WE sales solid-liquid separation equipment, chemical equipment, environmental protection equipment and other professional manufacturers. The policy of Hinming filter business : "people-oriented,technology leading, quality first, customer satisfaction, integrity and pragmatic,pioneering and enterprising." Hinming core ideas: reliable quality, supreme service, reasonable price, prompty delivery.The introduction of advanced manufacturing technology at home and abroad, the introduction of advanced test equipment, the absorption of modern management mode, and constantly improve the product system and all product function. Hinming filtering products through the ISO9001 quality management system certification.

We have automatic pressure minivan, frame filter press, automatic program control automatic plate pulling polypropylene filter press, polypropylene diaphragm filter press, belt press filter of DY type, DYN type concentration press one of belt press filter, stainless steel filters, precise microporous filter bag filtering products. Our products have spread in India, Vietnam, Iran, Saudi Arabia Japan, Australia and other countries. Our domestic market is in Guangdong, Guangxi,Yunnan, Hunan, Hubei, Jiangxi, Shanxi, Anhui, Xinjiang, Ningxia,etc. Hinming filtering the sustainable and stable development of the scale of equipment, and received many honors: "Chinese famous brand" press ten, "China quality assured,after sale service satisfaction, integrity protection model unit", "national AAA grade quality and honesty brand of member enterprises".

Main products: automatic packing polypropylene filter press, automatic program control automatic plate pulling polypropylene filter press, polypropylene diaphragmfilter press, band filter, stainless steel single, multi bag filter, stainless steel cartridgefilters, precise microporous filter and other filtering devices. Xin Ming Machinery Engineer can provide free technical advice and equipment selection for you, provide a wide range of technical support and service for the customers.

We hope to establish a long-term and win-win business cooperation with customers in the near future.

Welcome to visit to our factory!
