    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter

    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter


    Ceramic Sludge Treatment Press Filter Description
    The ceramic sludge is pumped into the filter press for hydraulic compaction, and the undercurrent flows out of the extruded clean water. The sludge remains in the plate, relaxes the machine, and the sludge falls into a cake shape into the bottom to facilitate one-time transportation and treatment of the sludge. Quick and easy.
    The filter press consists of a frame, a filter plate, a filter press system (manual, mechanical or hydraulic), and an electric control cabinet.
    The frame is composed of a base, a push plate and a beam, and supports the compaction device and the filter plate.
    The filter plate is installed on the beam between the tail plate and the push plate, and a filter cloth is sandwiched in the middle.
    During work, a pressing device (cylinder piston rod or screw) drives the push plate to press the filter plate and filter cloth between the push plate and the tail plate. A filter chamber is formed between the filter plates, and the material enters the filter chamber through the feed port on the tail plate. The solid particles are trapped in the filter chamber to form a cake, while the liquid is discharged from the tail plate. Similarly, in order to dry the pressed cake, compressed air may be introduced through the washing port.
    Technical Data
    Model
    XA(M)Y80/870-30U
    Filter Area(m2)
    80
    Plate Size(mm)
    870*870
    Cake Thickness(mm)
    30
    Filter Chamber Volume(L)
    1210
    Plate Qty(pcs)
    62
    Filtration Pressure(MPa)
    ≥0.6
    Motor Power(Kw)
    2.2
    Weight(kg)
    4561
    Dimensions L*W*H(mm)
    5430*1200*1300
    Foundation Size L/B/D/H(mm)
    4610/600/1270/835/480
    WHY CHOOSE US
    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter

    How to work:

    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter

    Factory Show
    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter

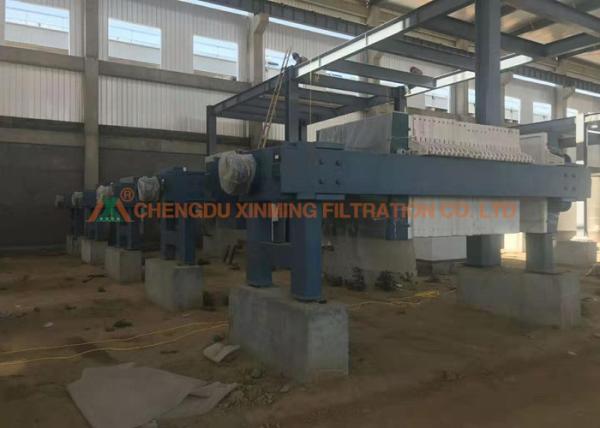

    Customer display
    ChengDu XinMing Ceramic Sludge Hydraulic Automatic Press Press Filter

    FAQ


    Q: how do I pay?
    A: both t/t and l/c are acceptable. We would appreciate it.
    Q: when will it be shipped?
    A: it depends on the quantity ordered. It is usually delivered within 2-3 weeks.
    Q: how is the product packaged?
    We use standard packing. If you have special packing requirements, we will pack as required, but the cost will be paid by the customer.
    Q: how do I install equipment when I arrive at my destination?
    We will provide you with details. If necessary, we will send technicians to help you. However, visa fees, air tickets and accommodation will be paid by the buyer.
